Introduction: Selection Criteria and Architectural Importance of Cladding Stones

Selecting the optimal exterior stone cladding is a critical decision in architectural engineering. Given the substantial capital investment and the irreversible nature of building envelope construction, architects must evaluate precise technical criteria: microclimatic compatibility, structural load, long-term weathering resistance, and lifecycle costs. Proper specification ensures structural safety, energetic performance, and permanent aesthetic value.

Architectural Identity and Environmental Protection

Natural stone facades serve a dual role in modern architecture: defining civic identity through material prestige while functioning as the primary protective barrier against environmental weathering—including thermal shock, freeze-thaw stress, driving rain, and atmospheric pollutants. Iran’s extensive geological diversity—often termed a global benchmark for dimension stones—provides a rich palette of sedimentary, metamorphic, and igneous options for exterior envelope systems.

Advantages and Technical Considerations of Exterior Natural Stone

Key technical advantages of natural stone cladding include:

• Regional availability and minimal industrial synthesis requirements.
• Natural chromatic depth and organic mineral aesthetics.
• UV | Exceptional stability against ultraviolet (UV) radiation and thermal degradation.
• Superior fire resistance (Class A1 non-combustible) and high impact strength.
• Long structural service life and diverse petrologic finishes.

These material benefits depend entirely on correct technical specification. Misapplication—such as specifying dense, polished granites without mechanical anchors or installing excessively heavy slabs without structural load engineering—can lead to adhesive failures, safety hazards, and structural dead-load issues.

Dimensional Standards: Slabs, Running Lengths, and Fabrication Costs

Exterior cladding panels are typically classified by standardized module widths rather than fixed lengths. The predominant market standard is the 40 cm fixed-width panel with free/random running lengths (up to 2+ meters). Smaller cut-to-size formats incur higher sawing and edging unit costs per square meter. Conversely, large-format panels (slabs) require specialized gangsaw processing, calibrated thickness management, and advanced handling equipment, positioning them at a premium price point primarily utilized for high-end interiors and grand entrance architectural features.

Petrologic Typologies for Exterior Facades

Material selection must balance environmental exposure, mechanical requirements, regional availability, and design intent. Geologically, Travertine, Granite, Crystal Marble (Crystalline Limestone), and Sandstone represent the primary technical categories for exterior envelope applications.

1. Calcitic Marble: Weathering Vulnerabilities and Acid Rain Degradation

In industrial urban environments affected by acidic precipitation ($SO_2$ and $NO_x$ emissions), calcitic marbles are highly susceptible to chemical etching, loss of surface polish, and structural dissolution. Because calcitic marbles consist primarily of calcium carbonate ($CaCO_3$), exposure to weak acids initiates surface micro-fissures, allowing water ingress. In freeze-thaw conditions, trapped interstitial water expands, causing deep structural spalling, severe discolouration, and accelerated physical weathering. Consequently, polished calcitic marble is generally not recommended for unsealed exterior cladding.

Specialized Specifications for Exterior Marble Application

Differential chemical weathering occurs when silicified veins resist acid attack while adjacent carbonate matrices dissolve, yielding an uneven, pitted surface ("orange-peel" degradation). If marble must be specified for exterior elevations, technical protocols mandate:

1. Substantial panel thickness (minimum 4.0 cm) to resist deep moisture penetration.

2. Non-polished, heavily textured surface treatments (such as bush-hammered, split-face, or sandblasted finishes) that mask progressive surface weathering.

Notable architectural precedents include the Azadi Tower in Tehran, which utilizes unpolished, thick-section Shahyadi marble panels to achieve decades of structural durability, and split-face Gandamak calcitic stone installed at a minimum thickness of 2.5 cm.

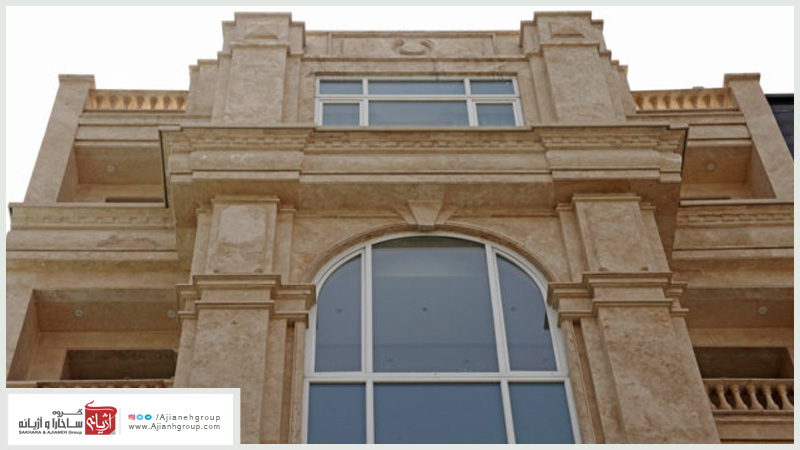

2. Travertine: Performance, Resin Aging, and Mechanical Bonding

Travertine is widely considered the optimal choice for wet-bed exterior cladding. Advances in gangsaw sawing and synthetic surface processing (epoxy/polyester vacuum resin filling) have elevated travertine from a porous, low-value material to a premier global cladding choice. While synthetic surface resins may experience UV degradation and loss of gloss after 15–20 years in extreme sun exposure, the underlying calcitic matrix remains structurally sound. The unsealed, cellular rear surface of vein-cut or cross-cut travertine provides unmatched mechanical bonding; cementitious mortar keys directly into open macro-pores, ensuring superior shear strength and long-term panel retention on multi-story facades.

Facade Installation Methodologies: Wet-Bed Mortar vs. Dry-Hang Systems

Due to thermal expansion/contraction cycles and seismic loads, relying solely on traditional cement mortar (wet-bed) poses significant risk of panel detachment over time. Technical installation standards require:

- Mechanical Safety Anchorage (Scooping / Safety Clips): Mandatory for wet-bed installations to mechanically tie stone panels to the structural substrate.

- Ventilated Dry-Hang Cladding (Dry-Assembly): Specifying sub-framing aluminum/steel profiles and stainless steel brackets/anchors to mechanically fix panels without wet mortar, eliminating thermal bridging and mortar bond failure risks.

3. Crystal Marble (Crystalline White Limestone / Marble)

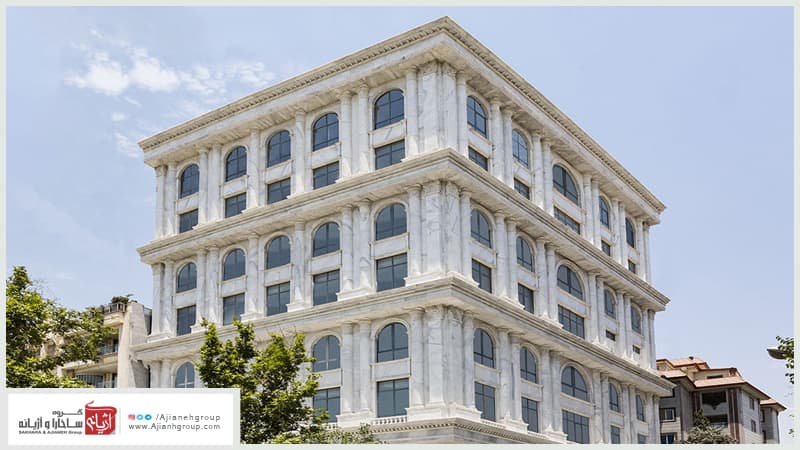

Crystal Marble ("Sang-e Chini") features an interlocking crystalline calcite structure with low water absorption and moderate mortar adhesion—positioning it technically between porous travertine and dense granite. Its high Solar Reflectance Index (SRI) makes white crystalline marble exceptionally effective in hot, arid climates, drastically reducing thermal absorption into the building envelope while offering high resistance to atmospheric weathering.

Essential Site Installation and Quality Control Checklist

• Microclimatic Material Matching: Align stone petrology with regional humidity, freeze-thaw cycles, and pollution levels.
• Mandatory Mechanical Anchorage: Utilize stainless steel safety clips or dry-hang brackets for high-rise elevations.
• Substrate Plumbness and Alignment: Ensure backup wall concrete/masonry is strictly plumb and structural openings are aligned across elevations.
• Geometric Precision: Verify right-angle (90°) mitered edges and true corner alignments.
• Drip Edge Engineering: Cut continuous drip grooves (drip channels) under projecting window sills and balcony copings to prevent water staining.
• Mortar Quality Standards: Specify fresh Portland cement with washed sand at a minimum mix ratio of $400 \text{ kg/m}^3$ for wet-bed applications.
• Surface Protection: Prevent mortar contact with porous stone surfaces during installation to avoid irreversible chemical staining.

Climatic Adaptability Guidelines

- Hot & Arid / High Solar Radiation Zones: Specify high-reflectance light-colored stones (white travertine, crystal marble) to minimize solar heat gain. Dark granites or dense marbles absorb solar thermal energy and increase cooling loads.

- Cold / Freeze-Thaw Environments: Specify low-porosity, high-density materials (Granite, Crystal Marble, or high-density sealed Travertine) to prevent frost wedging and spalling. Mandatory mechanical anchors (dry-hang or safety clips) are required due to thermal contraction stress.

- Temperate & Moderate Climates: Highly versatile; standard travertine and sealed natural stones perform reliably.

Commercial Valuation Drivers for Exterior Stone Slabs and Panels

• Petrologic Rarity and Quarry Yield: High-purity white quarry blocks with limited regional reserves (e.g., premium Atashkooh or Abbas Abad travertine) command the highest market prices.
• Dimensional Specifications: Longer running lengths and large-format slab panels require precise processing, yielding higher material value per square meter compared to shorter formats.
• Chromatic Grading: Lighter, uniform, and white-background stones are commercially priced higher than darker, irregular, or highly oxidized variations.
• Fabrication Technology: High-precision diamond gangsaw cutting, multi-stage vacuum resin filling, proper thermal curing (avoiding cheap oven-cured resins), and mirror-polishing increase processing costs but guarantee long-term performance.
