Exterior Natural Stone Cladding: Classification & Specifications Properties

Introduction to Architectural Stone Cladding

Building facades constitute a critical element in architectural engineering, directly shaping structural aesthetics, environmental protection, and building durability. In contemporary construction, a wide array of cladding materials is specified; however, natural dimension stone remains the predominant choice for high-end residential and commercial developments. Natural cladding stones encompass distinct petrologic classifications, each exhibiting unique mechanical and aesthetic attributes. Selecting the optimal stone type requires evaluating technical parameters such as climatic resilience, water absorption, structural weight, mechanical anchorage, and chemical resistance.

In modern construction, various cladding systems—including aluminum composite panels, curtain wall glazing, timber cladding, and natural stone—are utilized. Natural stone cladding carries a rich architectural heritage and continues to be widely specified due to its durability and timeless appeal. Primary stone categories specified for exterior facades include Travertine, Granite, Sandstone, Crystal Marble (White Crystalline Limestone), and Onyx/Marble varieties.

Essential Technical Criteria for Exterior Stone Selection:

1. Weathering and Environmental Resistance: Cladding stones must withstand thermal expansion, freeze-thaw cycles, driving rain, and UV radiation without thermal degradation or color fading.

2. Low Water Absorption and Abrasion Resistance: Low porosity prevents spalling, micro-cracking, and structural deterioration caused by trapped moisture.

3. Acid Rain Resistance: In polluted urban environments, stones exposed to acidic precipitation must demonstrate high resistance to chemical etching and surface degradation.

4. Mortar Bonding and Mechanical Anchorage: Adequate back-surface porosity or mechanical anchor grooves (anchorage clips/scoops) are required to ensure high shear bond strength and prevent panel detachment.

5. Structural Integrity Verification: Slabs must be free of macro-fissures and internal micro-cracks. Acoustic ringing tests (striking the slab to listen for a clear, resonant sound) serve as a quick field verification of structural soundness.

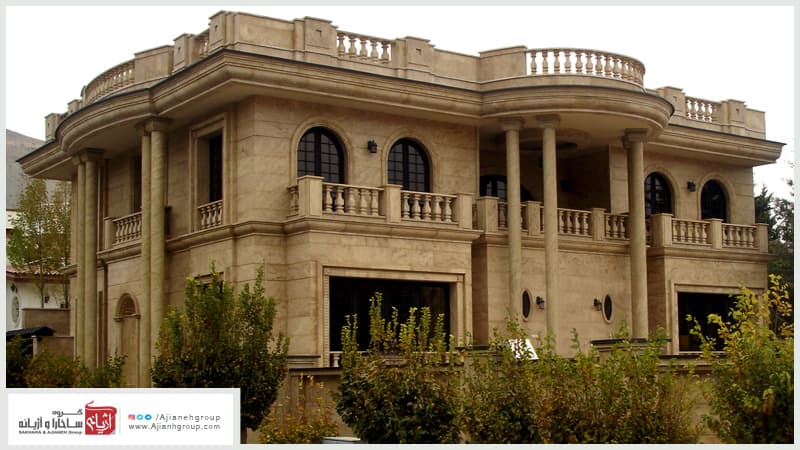

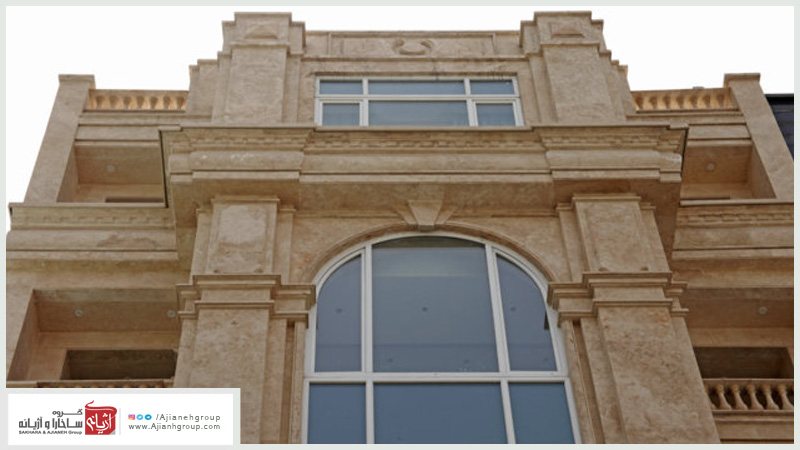

1. Travertine Cladding

Travertine is a porous terrestrial sedimentary rock formed by the rapid precipitation of calcium carbonate ($CaCO_3$) around geothermal hot springs and karst environments. Petrologically positioned between sedimentary limestone and metamorphic marble, it offers a balanced combination of structural strength and workable density. Travertine ranges in color from pure white and cream to tan, walnut, red, and silver-grey. Higher purity and lower metallic impurities correspond to lighter, cream-to-white chromatic grades.

Key Properties of Travertine:

Natural cellular void structure providing unique organic textures.

Exceptional mechanical adhesion with cementitious mortar due to back-surface macro-pores.

High resistance to thermal shock, freeze-thaw cycles, UV degradation, and moisture.

Extensive dynamic veining and color variations, highly suitable for Classic and Modern facade designs.

2. Granite Cladding

Granite is an intrusive plutonic igneous rock formed by the slow crystallization of magma beneath the Earth's surface. Composed primarily of quartz, alkali feldspar, plagioclase, and mica, it exhibits a uniform phaneritic (granular) matrix. Its color spectrum includes white, grey, pink, red, and dark tones depending on mineralogy. Due to its extreme hardness, granite is extensively specified for high-traffic flooring, urban paving, industrial facades, and heavy structural applications.

Key Properties of Granite:

• Extreme compressive strength, high bulk density, and exceptional impact resistance.
• Superior polishability, achieving high-gloss vitreous mirror finishes.
• Excellent weather and frost resistance; however, trace iron minerals in certain grades may oxidize under prolonged moisture exposure.
• Potential slight color alteration in certain dark varieties under direct UV radiation.
• Extremely low natural porosity; requires mandatory mechanical anchoring systems (dry-hang or safety clips) due to reduced direct mortar adhesion.

3. Sandstone Cladding

Sandstone is a clastic sedimentary rock composed mainly of silicate-sized mineral grains ($0.0625 \text{ mm to } 2 \text{ mm}$). Most sandstones consist of quartz and feldspar compacted over geological timescales in fluvial, lacustrine, or marine basins. Mineral impurities yield a diverse color range including tan, brown, yellow, red, pink, grey, and black.

Key Properties of Sandstone:

Variable texture ranging from fine-grained smooth to coarse tactile finishes.

Reliable resistance to frost and atmospheric weathering.

Higher water absorption rates due to elevated inter-granular porosity.

Chemical resistance depends on binding matrix: siliceous-bonded sandstones are acid-resistant, whereas calcareous-bonded types are sensitive to acid etching.

High flexural strength allowing for thinner panel cutting, effectively reducing dead load on building facades.

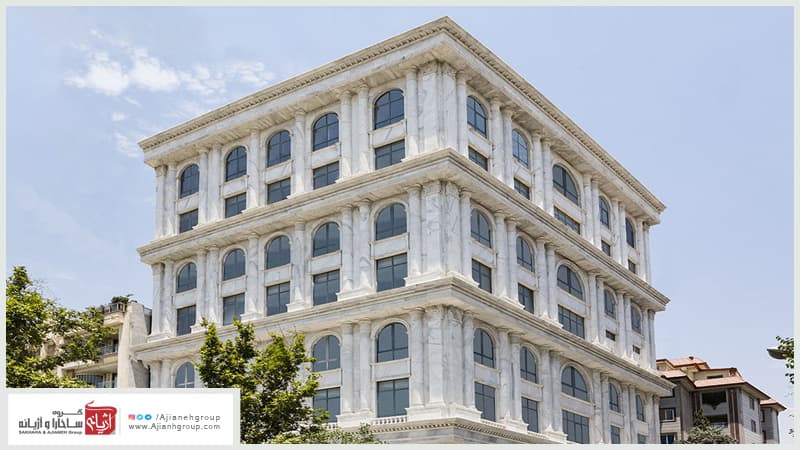

4. Crystal Marble (White Crystalline Limestone / Marble) Cladding

"Crystal Marble" (known locally as "Sang-e Chini") is a medium-to-fine-grained crystalline metamorphic rock composed predominantly of calcite, with trace wollastonite and quartz. Higher quartz content increases its overall hardness. The term originates from the clear, porcelain-like metallic ring produced when struck. Featuring a predominantly white and light grey chromatic palette, crystal marble has a long history of use in exterior facades, particularly in arid and hot climates, due to its high solar reflectance index (SRI) which reduces thermal absorption.

Key Properties of Crystal Marble:

• Moderate mechanical bonding with mortar; superior to granite but lower than macro-porous travertine.
• High resistance to thermal weathering and atmospheric exposure.
• Low water absorption rates compared to sedimentary limestones.
• Cost-effective commercial pricing relative to exotic imported marbles.

5. Onyx / Translucent Marble Cladding

Onyx and high-grade metamorphic marbles feature a dense, interlocking crystalline structure formed under intense heat and pressure. Pure marble is translucent and crystalline white, while vivid color veining results from mineral oxide impurities in the original limestone parent rock. For exterior cladding applications, unpolished or textured finishes are recommended to mitigate weathering impacts. Exterior installation typically mandates minimum panel thicknesses of 4 cm alongside specialized stainless-steel dry-hang anchoring mechanisms.
