Technical Specifications, Physical Properties, and Limitations of Travertine Dimension Stone

Geological Genesis and Definition of Travertine

Travertine is one of the most widely specified natural dimension stones in the global construction industry. Geologically classified as a porous terrestrial sedimentary rock, travertine is a form of limestone deposited by the rapid precipitation of calcium carbonate ($CaCO_3$) from geothermal springs, subterranean thermal waters, or karst cave systems (forming speleothems such as stalactites and stalagmites). The material displays a diverse color spectrum—ranging from white, beige, and light cream to intense yellow, red, walnut, grey, and dark brown—presenting both veined (vein-cut / striated) and non-veined (cross-cut / cloud-like) chromatic patterns.

Factors Influencing Chromatic Variation, Structural Porosity, and Adhesion Mechanics

The color intensity and aesthetic veining of travertine are dictated by trace mineral impurities—primarily iron oxides, manganese, and organic carbon compounds—present within the mineralizing hydro-thermal waters. Lower concentration of dissolved metallic impurities results in lighter, higher-purity cream and white travertine varieties. Excellent compressive strength, distinctive organic aesthetics, and superior polishability have established travertine as a premier choice for exterior architectural cladding.

Travertine is characterized by a naturally cellular, vuggy porous structure. These internal and surface voids provide enhanced acoustic absorption and thermal insulation properties. Crucially, open surface voids act as mechanical anchors during wet-bed installation; cementitious mortar penetrates the interconnected pores, creating an exceptional mechanical bond with the structural backup wall. Geologically, these voids originate from trapped carbon dioxide ($CO_2$) gas bubbles during rapid precipitation, as well as the decomposition of embedded organic matter (such as aquatic flora) within stagnant depositional basins.

Limitations, Vulnerabilities, and Processing Solutions for Travertine

Key technical limitations of travertine include susceptibility to freeze-thaw damage in saturated conditions and inherent chromatic/vein non-uniformity. When water entrapped within unsealed pores undergoes liquid-to-solid phase transition (freezing), frost wedging generates internal hydrostatic pressure that causes spalling or severe micro-cracking. Consequently, raw quarry blocks stored in sub-zero environments require protective thermal covers to prevent frost damage prior to gangsaw processing.

Unprocessed travertine exhibits relatively high water absorption rates compared to dense calcitic marbles. Modern stone processing mitigates this vulnerability through vacuum epoxy/polyester resin filling and high-grit diamond polishing. Surface resin treatment seals open voids, drastically reduces moisture absorption, inhibits dirt accumulation, and enhances stain resistance. The chemical quality of the resin and precision of the polishing line directly dictate the long-term durability and surface gloss retention of the slabs. Travertine remains the dominant specified material for classic, neo-classical, and Roman-style exterior facade architecture.

Historically, prior to the early 2000s, travertine was considered a low-value commodity due to primitive cement-filling techniques. The introduction of synthetic epoxy resin technology transformed the industry—allowing processors to structuralize surface voids, preserve structural integrity, and achieve mirror-polished finishes. This technological shift catalyzed massive growth in travertine extraction, processing, and domestic/international distribution.

Mineralogical and Petrographic Properties of Travertine

Petrologically, travertine is a hard, semi-crystalline, porous calcitic limestone composed predominantly of calcium carbonate ($CaCO_3$). It features characteristic banded, stratiform textures formed by sequential mineral precipitation around thermal springs, rivers, or lacustrine environments. While chemically similar to speleothems, travertine exhibits higher crystalline density and superior polishability. Related sedimentary formations include calcareous tufa (highly porous, low-density limestone deposits) and travertine-onyx. Due to its durability, workability, and crystalline matrix, travertine has served as a primary structural and decorative building material since antiquity. Geologically, most accessible travertine deposits are young continental formations originating in the Quaternary period.

Physical and Chemical Specifications

Optical Translucency

Travertine is inherently opaque; however, high-purity crystalline cut panels (calcitic/onyx varieties) exhibit partial optical translucency when sawn into thin-veneer panels.

Varies from dull/dull-pearly in unpolished states to vitreous (glass-like) when resin-filled and mirror-polished.

Chemical Reactivity

As a carbonate rock ($CaCO_3$), travertine reacts vigorously with dilute hydrochloric acid ($HCl$), releasing carbon dioxide gas ($CO_2$). Exposure to acidic cleaning agents causes surface etching.

Mohs Hardness

Travertine rates between 3.0 and 4.0 on the Mohs hardness scale (typical of mineral calcite).

Streak Color

The streak of travertine mineral calcite is consistently white.

Color Range

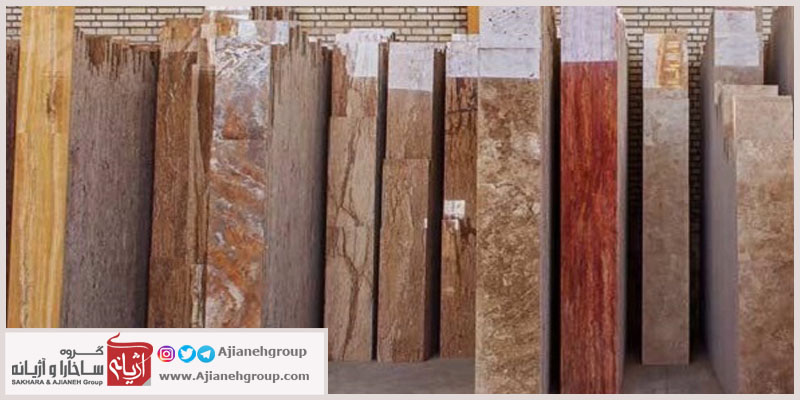

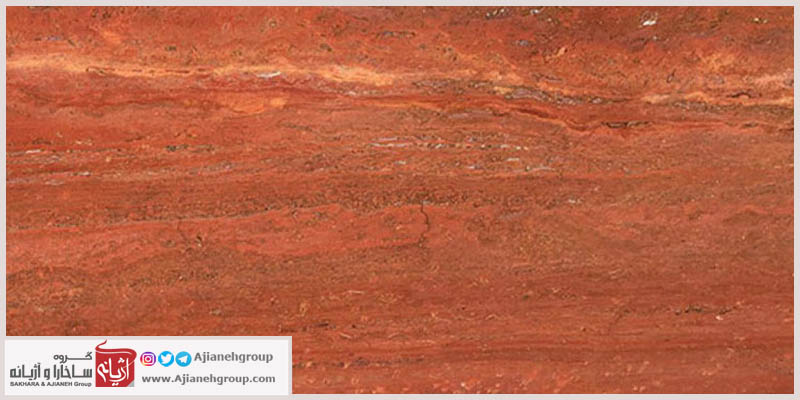

Extensive chromatic diversity including white, cream, beige, walnut, yellow, red, and silver-grey. No two quarry blocks or slabs display identical veining patterns.

Bulk Density

Typical bulk density ranges between $2.41 \text{ g/cm}^3$ and $2.71 \text{ g/cm}^3$, depending on internal void ratio and porosity.

Specific Gravity

Apparent specific gravity averages approximately $2.68 \text{ to } 2.71$.

Flammability & Chemical Solubility (Technical Correction)

[Technical Note]: Natural calcite/travertine is an inorganic, non-combustible material (Class A1 fire rating) with no flash point. It is insoluble in water and organic solvents (such as benzene, acetone, or alcohols), but soluble in mineral acids.

Depositional Environments and Host Rock Associations

Travertine deposits form in hydro-geothermal regimes rich in dissolved calcium bicarbonate. Primary host rock associations include:

• Subsurface Carbonate Strata
• Siliceous Bedding and Chert Formations
• Lacustrine Sedimentary Basins
• Vein Deposits and Calcareous Onyx Formations

Morphology of Travertine Deposits

Geothermal precipitate morphologies include travertine mounds, fissure ridges, terraced step-basins, and broad sheet deposits. Hydro-dynamic turbulence and $CO_2$ degassing rates dictate deposition kinetics: higher turbulence accelerates $CO_2$ evasion, yielding higher precipitation rates and macro-porous void networks. Biogenic processes, including microbial mat mediation (bacterial calcite precipitation), actively contribute to biochemical travertine formation.

Structural Versatility and Anisotropic Cutting (Vein-Cut vs. Cross-Cut)

Travertine's distinct bedded stratification allows for anisotropic processing in two primary directions:

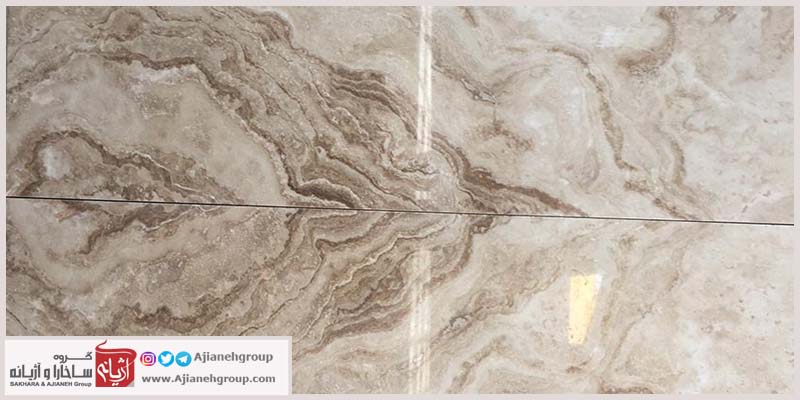

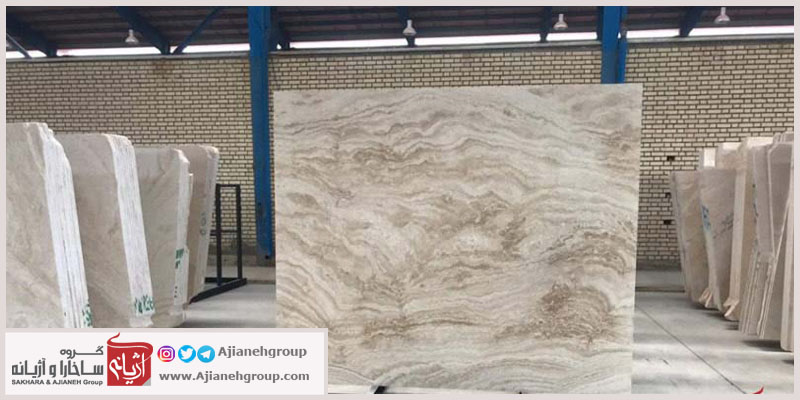

1. Vein-Cut (Cut parallel to bedding planes): Exposes parallel, linear striations (waves/lines).

2. Cross-Cut (Cut perpendicular to bedding planes): Exposes cloud-like, non-directional surface patterns.

Cross-cut (veinless) slabs generally exhibit higher flexural strength because load orientation does not align with weak inter-bedding planes.

Architectural Advantages and Structural Anchorage

The macro-porosity of travertine provides unrivaled mechanical adhesion with mortar, making it the premier choice for high-rise exterior cladding. Mortar keying into rear voids dramatically reduces the risk of tile detachment compared to dense granites or crystalline marbles. While mechanical anchoring (stainless steel safety clips/scoops) is standard practice for modern high-rise facades, travertine's natural adhesion factor offers superior structural reliability.
